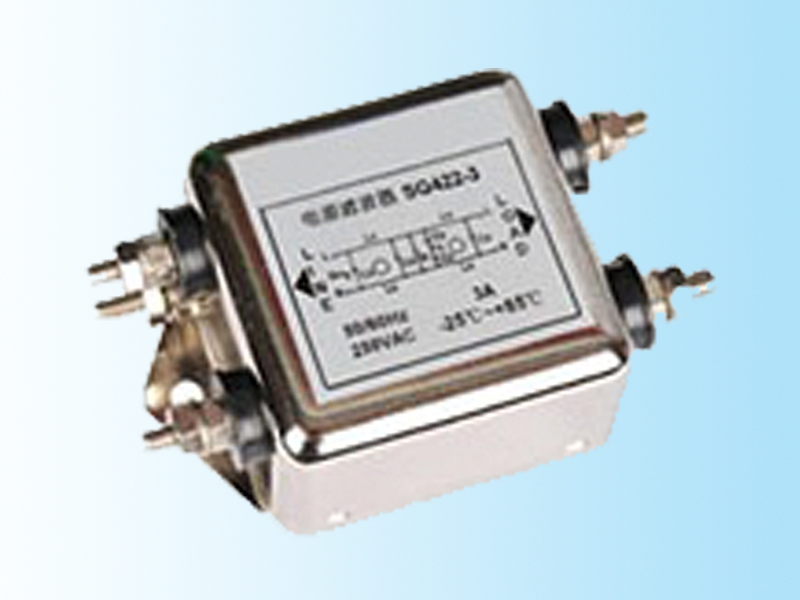

產品及應用
● 雙節濾波
● 對共模干擾和差模干擾具有優異的抑制能力
● 泄露電流低，應用廣泛
● 適應各種阻抗匹配，對快速瞬變脈沖群 (EFT) 等實驗具有良好的輔助效果
● 適用于于開關電源、UPS、加油機、雕刻機、控制器等電子電力設備
技術參數
|
額定電壓 |
250VAC |
額定電流@40℃ |
1A~30A |
|
|
試驗電壓 |
線-線 |
1760VDC |
工作頻率 |
50/60Hz |
|
線-地 |
2000VAC |
氣候類別 |
25/085/21 |
|
產品列表
|
產品型號 |
額定電流 @40℃ |
泄露電流 250VAC/50Hz |
外型 |
電路參數 |
端接方式 |
重量 |
||||
|
L (mH) |
Cx (uF) |
Cy (nF) |
R (MΩ) |
|
|
|||||
|
WD422-1 |
1A |
≤0.5mA |
B1/B2 |
12 |
0.22 |
4.7 |
1.0 |
L |
M4 |
130 |
|
WD422-3 |
3A |
≤0.5mA |
B1/B2 |
2.5 |
0.22 |
4.7 |
1.0 |
L |
M4 |
130 |
|
WD422-6 |
6A |
≤0.5mA |
B1/B2 |
1.0 |
0.22 |
4.7 |
1.0 |
L |
M4 |
130 |
|
WD422-10 |
10A |
≤0.5mA |
H1 |
0.8 |
0.47 |
4.7 |
1.0 |
L |
M4 |
160 |
|
WD422-16 |
16A |
≤0.5mA |
H2 |
0.75 |
0.47 |
4.7 |
0.47 |
L |
M4 |
230 |
|
WD422-20 |
20A |
≤0.5mA |
H5/J |
0.6 |
1.0 |
4.7 |
0.47 |
L |
M4 |
300/400 |
|
WD422-30 |
30A |
≤1.0mA |
J |
0.4 |
1.0 |
10 |
0.47 |
--- |
M6 |
400 |
|
LINE TO GROUND(PN---E) 共模 (dB) |
|
LINE TO LINE(P---N) 差模 (dB) |
|||||||||||||
|
MHz |
.1 |
.15 |
.5 |
1 |
5 |
10 |
30 |
.1 |
.15 |
.5 |
1 |
5 |
10 |
30 |
|
|
WD422-1 |
85 |
92 |
78 |
72 |
59 |
55 |
55 |
18 |
35 |
78 |
82 |
82 |
78 |
60 |
|
|
WD422-3 |
65 |
75 |
80 |
78 |
63 |
60 |
55 |
19 |
55 |
80 |
78 |
68 |
60 |
58 |
|
|
WD422-6 |
20 |
15 |
75 |
76 |
65 |
63 |
46 |
15 |
30 |
81 |
78 |
68 |
62 |
58 |
|
|
WD422-10 |
15 |
28 |
75 |
80 |
62 |
58 |
50 |
9 |
27 |
72 |
72 |
72 |
71 |
69 |
|
|
WD422-16 |
10 |
22 |
70 |
76 |
62 |
58 |
51 |
10 |
23 |
73 |
74 |
67 |
60 |
60 |
|
|
WD422-20 |
16 |
12 |
53 |
65 |
59 |
55 |
52 |
21 |
18 |
45 |
75 |
80 |
70 |
80 |
|
|
WD422-30 |
15 |
12 |
57 |
70 |
60 |
55 |
52 |
20 |
25 |
55 |
75 |
82 |
75 |
60 |
|
