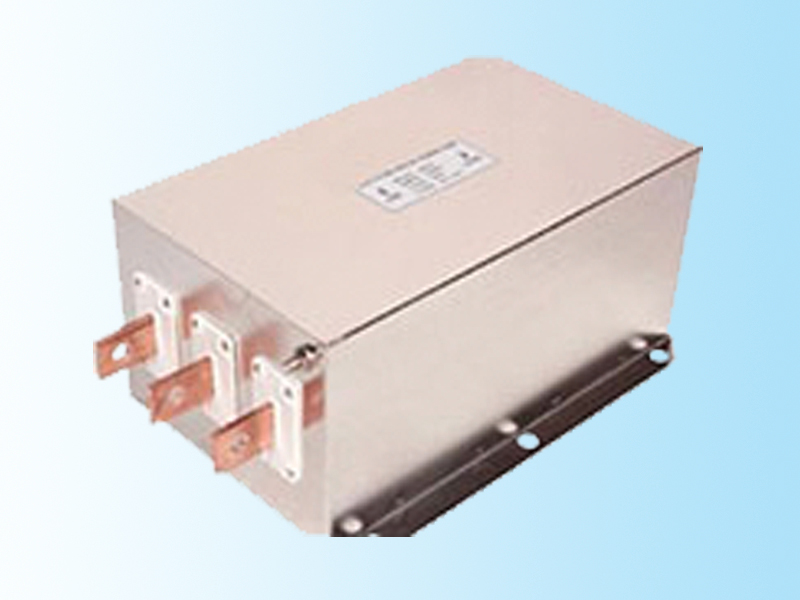

產品及應用
● 優秀的傳導濾波效果
● 用于抑制變頻器產生之電磁干擾，減少變頻器輸出端對外界的耦合干擾
● 有效降低IGBT輸出的高頻諧波，解決變頻器干擾電機的問題；延長電機使用壽命
● 抑制dv/dt，緩解變頻器輸出的尖峰電壓對電機造成的傷害
● 用于降低變頻器輸出端長電纜產生的射頻干擾，提高設備可靠性和抗干擾性
技術參數
|
額定電壓 |
440VAC |
額定電流@40℃ |
5A~1600A |
|
|
試驗電壓 |
線-線 |
2250VDC |
工作頻率 |
0-200Hz |
|
線-地 |
2700VDC |
開關頻率 |
16KHz max |
|
|
絕緣電阻 |
＞200MΩ@500VDC |
氣候類別 |
25/085/21 |
|
產品列表
|
產品型號 |
額定電流 @40℃ |
變頻器功率 (KW) |
外型尺寸 |
端接方式 |
重量 |
|
|
|
|
|||||
|
WD960-5 |
5A |
0.75/1.5 |
N2 |
M4 |
--- |
1100 |
|
WD960-8 |
8A |
2.2/3.7 |
N2 |
M4 |
--- |
1100 |
|
WD960-16 |
16A |
5.5/7.5 |
N5 |
M4 |
--- |
1500 |
|
WD960-30 |
30A |
11/15 |
N5 |
M6 |
--- |
1500 |
|
WD960-45 |
45A |
18.5/22 |
N10 |
M6 |
--- |
2500 |
|
WD960-75 |
75A |
30/37 |
N12 |
M8 |
--- |
7000 |
|
WD960-100 |
100A |
45 |
N12 |
M8 |
--- |
7000 |
|
WD960-120 |
120A |
55 |
N12 |
M8 |
--- |
7000 |
|
WDQ960-150 |
150A |
75 |
N15 |
M10 |
--- |
10000 |
|
WD960-200 |
200A |
90 |
N15 |
M10 |
--- |
10000 |
|
WD960-250 |
250A |
110 |
N15 |
M10 |
--- |
10000 |
|
WD960-300 |
300A |
125/132/150 |
N30 |
--- |
Bar |
14000 |
|
WD960-420 |
420A |
160/210/220 |
N30 |
--- |
Bar |
14000 |
|
WD960-500 |
500A |
250/260 |
N60 |
--- |
Bar |
16000 |
|
WD960-600 |
600A |
280/315 |
N60 |
--- |
Bar |
16000 |
|
WD960-800 |
800A |
400 |
N80 |
--- |
Bar |
20000 |
|
WD960-1000 |
1000A |
500 |
N90 |
--- |
Bar |
22000 |
|
WD960-1100 |
1100A |
550 |
N90 |
--- |
Bar |
22000 |
|
WD920-1200 |
1200A |
600 |
N90 |
--- |
Bar |
23000 |
|
WD920-1600 |
1600A |
700 |
N100 |
--- |
Bar |
23000 |
